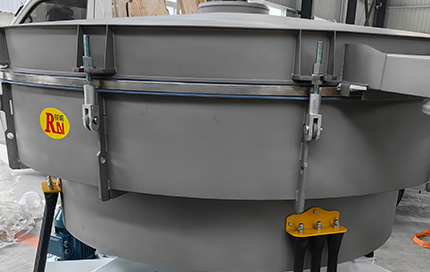

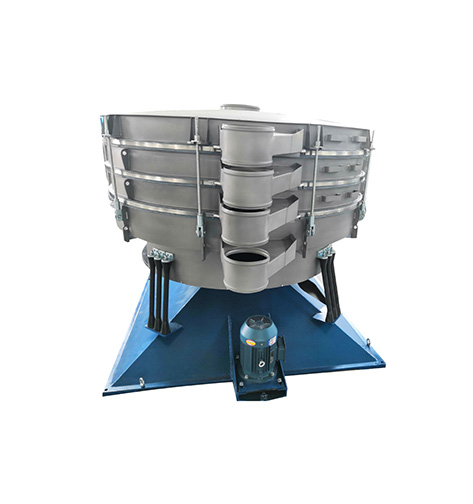

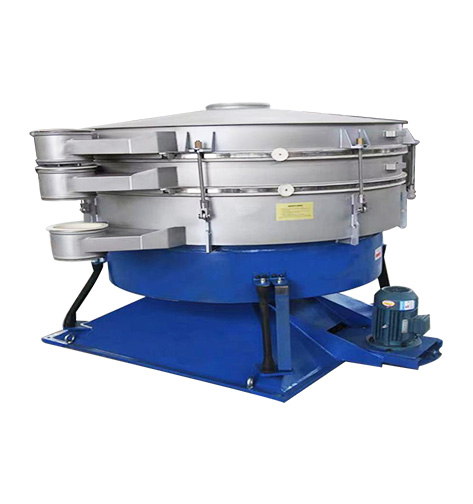

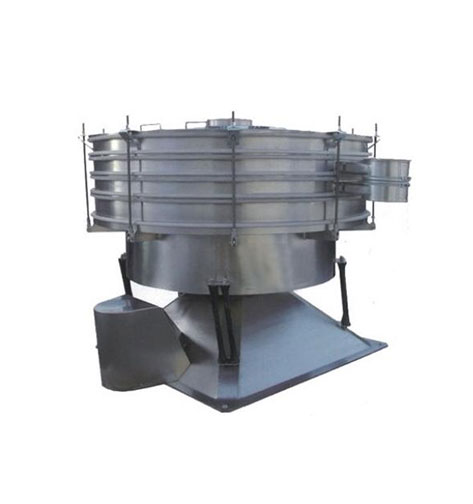

Circular Swing Screen

Share With:

Facebook Twitter LinkedIn Pinterest Share

Send Message Inquiry Now

Product Introduction

The design of the circular swing screen is a high-efficiency screening machine specially designed to meet the requirements of large-volume, high-precision screening manufacturers. The simplest screening is to screen with both eyes and hands. The swing screening machine is a mechanical simulation of this. It is currently the most effective simulation of the effective principle of manual screening movement (screening accuracy, efficiency, and screen life are all 5-10 times that of conventional round screens), and meets all fine requirements. and ultra-fine range of powders and particulate materials, especially suitable for materials that are difficult to handle.

Product Features

1. Up to 5 times the output per unit area;

2. Accurate to 6 levels of separation, the screening efficiency is as high as 90%-95%;

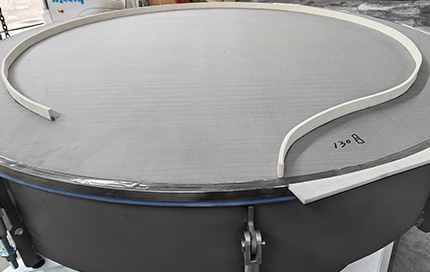

3. Using silicone rubber balls, ultrasonic and other high-efficiency screen cleaning device systems, the screen holes will not be blocked

4. Sealed dust removal, safe operation;

5. The acceleration is 4.5 times lower than that of the vibrating screen, which increases the life of screening parts and reduces maintenance;

6. Noise <75 decibels;

7. Optimized gravity balance and low dynamic load on the foundation

Structural Principles

①The basic rotary motion is similar to manual screening. Eccentricity adjustable from 25 to 40mm, low speed V-belt drive adjustable from 120 to 360rpm;

② The residence time of each product can be adjusted toward the driving axis through the radial and tangential angles of the swing screen;

③ Therefore, a horizontal and throwing three-dimensional tumbling motion is established. The materials are evenly dispersed on the entire screen surface from the center to the outer edge, and then transported in a spiral to spread axially. The fine particles thus complete the entire screening process.

④The horizontal and vertical acceleration increases with the movement of the particles, and the particles close to the sieve size are successfully separated: the larger particles are transported to the outlet, and the flow is controlled by an adjustable guide device at the outlet, which controls the material Another factor in dwell time;

⑤ This process is repeated between each layer of sieves.

Application

1. Chemical Industry: Screen plastics, resins, granules, and powdered chemicals for precise particle sizing.

2. Pharmaceuticals: Grade active pharmaceutical ingredients (APIs), tablets, and granules with hygienic, dust-free operation.

3. Food Processing: Separate sugar, salt, flour, spices, and additives to ensure uniform quality.

4. Mining & Minerals: Classify ores, coal, sand, gravel, and crushed aggregates efficiently.

5. Metallurgy: Sort metal powders, slag, or recycled metal chips for material recovery.

6. Agriculture: Sieve seeds, grains, fertilizers, and animal feed to remove impurities.

7. Building Materials: Screen cement, gypsum, silica, and dry mortar for consistent grading.

8. Recycling: Separate plastics, glass, or e-waste particles in recycling facilities.

Application6

Technical Parameters

•The normal data of the series of finalized products listed in the table of RN series swing vibrating screen are for selection reference only. The specific parameters are subject to the random technical data.

•Customers should fully communicate with professional and technical personnel before selecting models to facilitate reasonable planning and scientific decision-making.

Model	Diameter(mm)	Screen area(m²)	Screen inclination angle(゜)	Number of layers	Power(kw)
RN-600	600	0.21	0-10	Customized	0.25
RN-1000	1000	0.66			1.5
RN-1200	1200	0.98			2.2
RN-1600	1600	1.81			4
RN-2000	2000	2.80			4
RN-2400	2400	4.15			5.5
RN-2600	2600	5.31			5.5
RN-3200	3200	7.50			11
