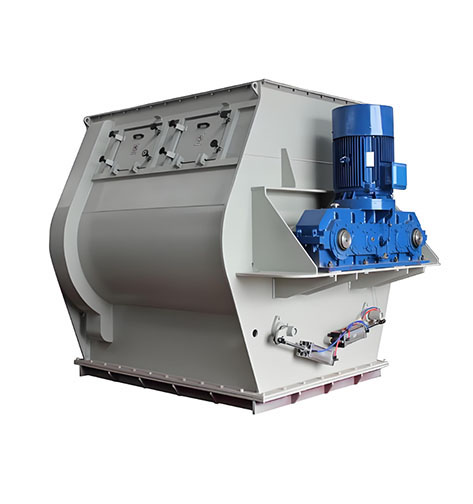

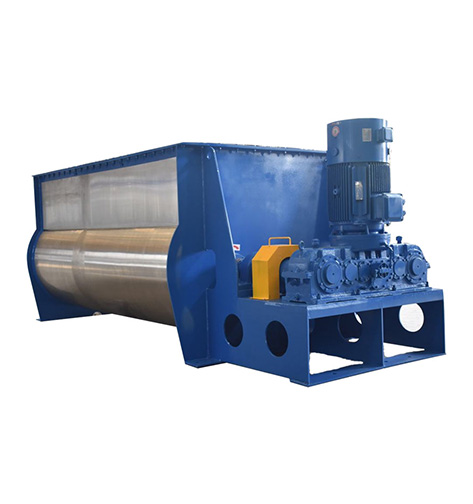

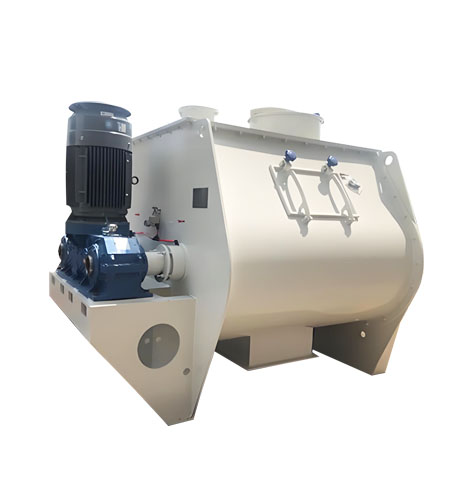

Horizontal Gravity-free Mixer

Share With:

Facebook Twitter LinkedIn Pinterest Share

Send Message Inquiry Now

Product Introduction

This product can mix powder with powder, powder with granules, especially materials with widely different specific gravity or particle size, and has a good mixing effect; the equipment has two rows of different directions in the twin U-shaped cylinders. When the blade is working, the material moves in three directions: radial, circumferential and axial, forming multiple effects such as cross circulation and shear blending. It achieves uniform mixing in a very short time, with high mixing efficiency, low energy consumption and pollution. Small. The mixing speed of this machine is high, and batch mixing usually lasts for 2 to 3 minutes. It is especially suitable for production lines.

The horizontal gravity-free mixer is composed of a transmission part, a paddle mixer, and a twin U-shaped barrel; the transmission part is a reducer that drives the mixer to operate through multiple rows of chains or gear drives; the mixer is a double-shaft paddle with a shaft The paddles arranged at a special angle rotate in opposite directions at a constant speed to ensure that the material is thrown in three directions: radial, circumferential and axial, forming multiple effects such as cross circulation and shear blending, achieving uniform mixing in a very short time.

Product Features

① Different mixing blades can be selected according to different material properties;

② When the material ratio is 1%, the mixing uniformity reaches 98%;

③ Able to uniformly mix 500-mesh fine powder and 5mm granular materials;

④ This product has high mixing efficiency and large production capacity. It is generally used in production lines with various large-scale mixing volumes. It is designed for production line operation, automatic batching, automatic mixing, automatic packaging and other functions.

Application

1. Chemical Industry: Blend powders, granules, resins, and additives uniformly.
2. Pharmaceuticals: Mix APIs, excipients, and granules with precision and consistency.
3. Food Processing: Combine spices, seasonings, flour, or dry ingredients efficiently.
4. Animal Feed: Homogenize feed components like grains, vitamins, and supplements.
5. Building Materials: Mix dry mortar, cement, gypsum, or lightweight aggregates.
6. Plastics & Polymers: Ensure even distribution of colorants, fillers, or additives.
7. Agriculture: Blend fertilizers, pesticides, or seed coatings effectively.
8. Cosmetics: Create uniform mixtures of powders, pigments, or base formulations.

Application4

Technical Parameters

Model/Project	Total Volume(m³)	Load Factor	Motor Power(kw)	Dimensions Maimum Diameter ×Height(mm)	Weight(kg)
RNWZL-0.05	0.05	0.4-0.6	1.5	1290×600×837	230
RNWZL-0.2	0.2	0.4-0.6	4	1124×1110×720	260
RNWZL-0.4	0.4	0.4-0.6	4	1400×1250×1030	450
RNWZL-0.5	0.5	0.4-0.6	7.5	1450×1500×950	800
RNWZL-1	1	0.4-0.6	11	1800×1800×1350	1150
RNWZL-1.5	1.5	0.4-0.6	15	1850×1950×1180	1500
RNWZL-2	2	0.4-0.6	18.5	2200×2400×1600	2800
RNWZL-2.5	2.5	0.4-0.6	22	2300×2360×1620	4200
RNWZL-4	4	0.4-0.6	22	2680×2400×1850	4500
RNWZL-5	5	0.4-0.6	37	2950×3050×2040	6000
RNWZL-6	6	0.4-0.6	45	3050×3250×2100	7000
RNWZL-10	10	0.4-0.6	55	3550×3150×2400	8000
RNWZL-12	12	0.4-0.6	55	4695×3180×2500	10500
RNWZL-15	15	0.4-0.6	55	4180×3960×2600	10000
RNWZL-20	20	0.4-0.6	75	5700×3700×2500	13000
