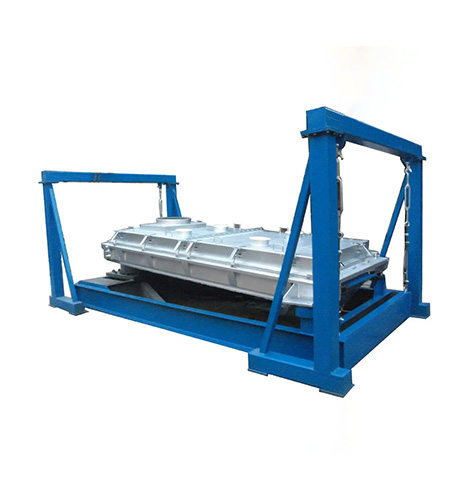

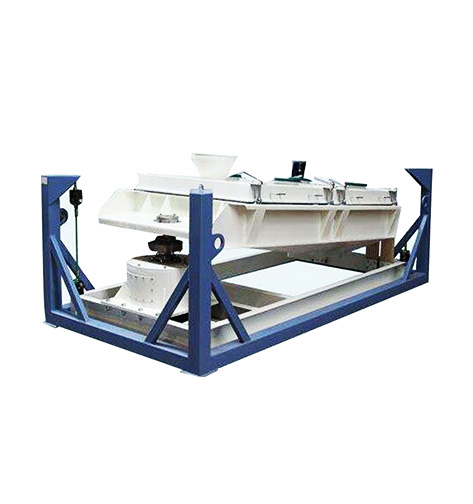

Precision Gyratory Screen
Precision Gyratory Screen

Product Introduction

Running Machinery's carefully designed large-scale granular screening machine has a large screening area; it is the best screening machine in the industrial mass production of granular materials. Screening of spherical, strip-shaped, sheet-shaped, columnar, easily broken, and irregular-shaped materials, with high precision and huge processing capacity, is unmatched by other screening machines.

Precision gyratory screen with stable operation and high screening efficiency. This high-precision, large-capacity screening machine is incomparable to other screening machines.

Simply pursuing screening accuracy will sacrifice output, while pursuing large output will reduce accuracy. The square precision gyratory screen is a high-efficiency screening equipment with high precision and large output specially designed to address the above problems. It is widely used In chemical industry, metallurgy, non-ferrous metals, non-ferrous metals, food, abrasives and other industries.

Through the precision gyratory screen, the centrifugal motion generates gyratory motion and is transmitted to the screen surface, so that the materials are quickly dispersed in the front of the screen machine.

Product Features

① Planar rotation and linear reciprocating motion, low-angle inclined screen surface, high efficiency and high output;

② Planar gyration motion close to the mesh surface, spherical, strip-shaped, sheet-shaped, columnar, easily broken, and irregular-shaped screening has the most advantages;

③ Jumping up and down, large strip-shaped particles do not gradually enter the net;

④ When materials enter the machine, they are quickly thinned and stratified, and smaller particles quickly settle and pass through the mesh;

⑤ The material has a longer stroke and faster flow speed;

⑥ The material rotates in rotation instead of being forced through the screen by vibration, resulting in the best screening accuracy;

⑦ Gentle plane movement will not damage the screen and minimize the chance of clogging the mesh;

⑧ Equipped with effective screen cleaning device;

⑨ The drive is efficient and durable.

Application

1. Pharmaceuticals: Precisely grade tablets, granules, and active ingredients with GMP-compliant, contamination-free screening.

2. Food & Beverage: Sieve flour, spices, sugar, or additives for uniform particle size and hygienic processing.

3. Chemicals: Classify high-purity powders, catalysts, and fine chemical compounds with micron-level accuracy.

4. Metallurgy: Sort metal powders, alloy particles, or abrasive materials for quality control in manufacturing.

5. Ceramics & Abrasives: Screen ceramic powders, sandblasting media, or polishing agents to ensure consistency.

6. Cosmetics: Refine pigments, talc, and base powders for smooth texture and flawless product formulations.

7. Electronics: Grade silicon powders, conductive materials, or solder pastes for precision component production.

8. Recycling: Separate fine plastics, glass fragments, or e-waste particles to enhance material purity.



Application6

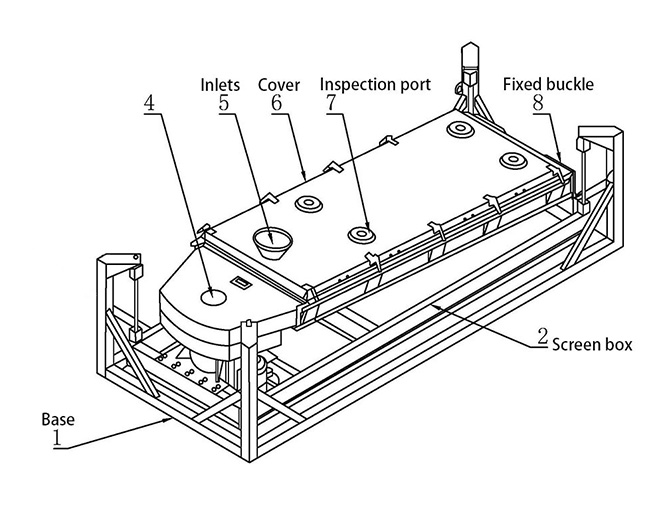

Technical Parameters

layers

Model

Sieve specification

Screen box

Motor

A

B

C

D

E

F

Weight

W*L

Trip

Power

Speed

(mm)

(mm)

(kw)

(rpm)

(mm

(mm)

(mm)

(mm)

(mm)

(mm)

(kg)

15

RNHX1021

1000×2100

63.5

1.5

960

3425

1820

1500

1000

φ300

φ200

980

RNHX1030

1000×3000

63.5

1.5

960

4325

1820

1500

1000

φ300

φ200

1200

RNHX1236

1200×3600

76

2.2

960

5170

2180

1550

1200

φ300

φ200

2020

RNHX1530

1500×3000

76

5.5

960

4220

2480

1600

1500

φ350

φ200

1340

RNHX1536

1500×3600

76

5.5

960

4820

2480

1600

1500

φ350

φ200

2410

25

RNHX1021

1000×2100

63.5

1.5

960

3425

1820

1500

1000

φ300

φ200

1400

RNHX1030

1000×3000

76

4

960

4420

1820

1500

1000

φ300

φ200

1840

RNHX1836

1800×3600

76

7.5

960

5410

2480

1700

1800

φ400

φ250

3880

RNHX1530

1500×3000

76

7.5

960

4420

2480

1600

1500

φ350

φ200

2780

RNHX1536

1500×3600

76

7.5

960

5020

2480

1600

1500

φ350

φ200

3180

35

RNHX1236

1200x3600

76

5.5

960

5170

2180

1550

1200

φ300

φ200

1550

RNHX1530

1500×3000

76

7.5

960

4620

2480

1600

1500

φ350

φ200

3200

RNHX1836

1800×3600

76

7.5

960

5610

2780

1700

1800

φ400

φ250

4170

RNHX2050

2000×5000

92

11

960

6480

2900

1700

2000

φ400

φ250

5500

Send Message

    Relate Products

    Open-top Dust-free Ton Bag Feeding Station

    The open-top dust-free ton bag feeding station uses an electric hoist to lift the material bag to the feeding port...

    Learn More

    Vibrating Probability Screen

    GLS vibrating probability screen is referred to as probability screen. The running trajectory of the screen box of...

    Learn More

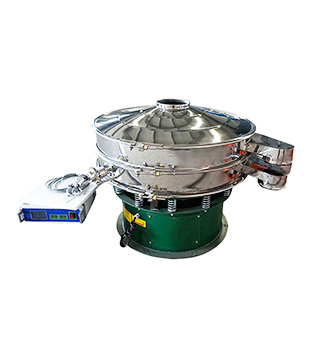

    Ultrasonic Vibrating Screen
