Rotary Vibrating Screen
Rotary Vibrating Screen

Product Introduction

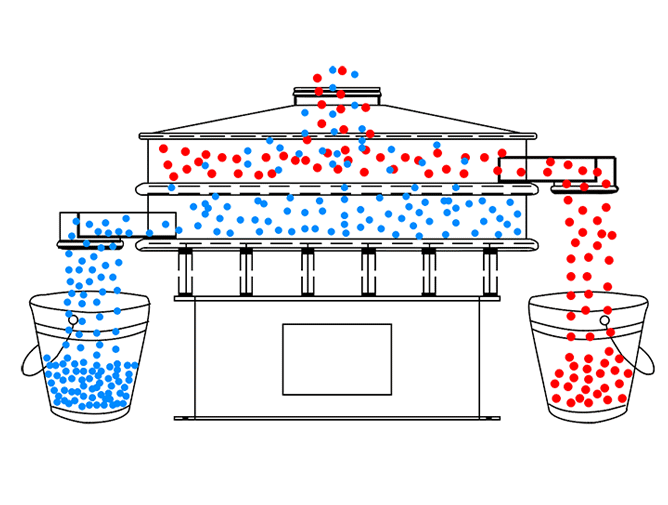

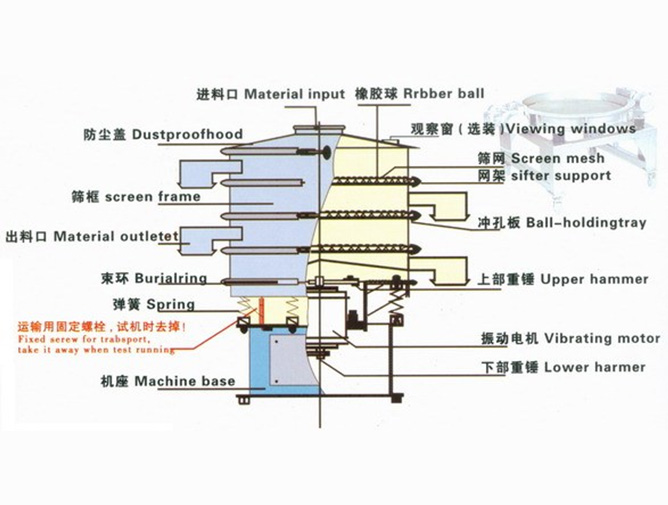

The rotary vibrating screen uses weights (unbalanced weights) installed at the upper and lower ends of the vibration motor to convert the rotational motion force of the motor into horizontal, vertical, and tilted three-dimensional motion (three-dimensional motion), and then this motion passed to the screen surface. Changing the phase angle of the upper and lower weights can change the movement trajectory of the material on the screen surface.

Product Features

① The widest screening range: suitable for screening of various particles and powders, and filtration of slurries. Screening can reach 500-600 mesh, and filtration can reach 5 microns;

② The mesh is not clogged: specially designed various screen cleaning devices minimize the chance of mesh clogging;

③ Single-layer and multi-layer sorting: A single RN vibrating screening machine can select 1-5 layers of screens and can perform 2 to 6 levels of sorting at the same time; single-layer filtration can meet the requirements at one time;

④ Easy screen replacement: RN vibrating extension machine has a variety of grid structures according to different needs: it can shorten the time to replace the screen to 3-5 minutes, which saves 30-60 minutes compared with other types of vibrating screens; the mesh does not deform , The screen has long service life and high efficiency.

Application

1. Pharmaceuticals: Precisely sieve granules, powders, and active pharmaceutical ingredients (APIs) with GMP-compliant, dust-free operation.

2. Food & Beverage: Grade sugar, salt, spices, flour, and additives to ensure uniform particle size and hygiene.

3. Chemical Industry: Screen fine powders, catalysts, pigments, and abrasive materials with micron-level accuracy.

4. Metallurgy: Separate metal powders, alloy particles, or welding slag for quality refinement.

5. Ceramics & Glass: Classify ceramic glazes, silica sand, or glass beads for consistent production quality.

6. Cosmetics: Refine talcum powder, pigments, and base formulations to achieve smooth, homogeneous textures.

7. Electronics: Sieve solder paste, magnetic materials, or silicon powders for precision electronic components.

8. Recycling: Sort plastics, metal chips, or e-waste particles to enhance recycling efficiency and purity.



Application4

Technical Parameters

RN series rotary vibrating screen specifications

Model Power(kw) Sieve Diamater(φ) Effective Area(m) Layers
RN-600-15s 0.55  560 0.2375 1
RN-600-25s 0.55  2
RN-600-3s 0.55 3
RN-800-1s 0.75  760 0.4416 1
RN-800-25 0.75  2
RN-800-3s 0.75 3
RN-1000-1s 0.75 930 0.6789 1
RN-1000-25 1.1 2
RN-1000-3s 1.5 3
RN-1200-1s 1.1  1130 1.0382 1
RN-1200-2s 1.5  2
RN-1200-3s 1.75 3
RN-1500-1s 2.2  1430 1.6052 1
RN-1500-2s 2.2  2
RN-1500-3s 2.2 3
RN-1800-1s  2.2  1730 2.63523 1
RN-1800-2s 2.2  2
RN-1800-3s 3.0 3



Overall dimensions

Model

A

B

C

D

E

F

H

Single-layer Height

Double-layer Height

Three-layer Height

RN-600

560

460

120

600

130

95

450

750

860

1060

RN-800

680

580

200

800

150

100

550

840

980

1120

RN-1000

800

700

200

970

150

120

680

840

980

1120

RN-1200

980

860

250

1170

180

140

790

1010

1150

1290

RN-1500

1180

1060

280

1470

200

170

930

1060

1220

1380

RN-1800

1490

1350

320

1770

200

180

1090

1220

1390

1560
