Small Bag Dust-free Feeding Station

Small Bag Dust-free Feeding Station

Share With:
Small Bag Dust-free Feeding Station
Small Bag Dust-free Feeding Station

Product Introduction

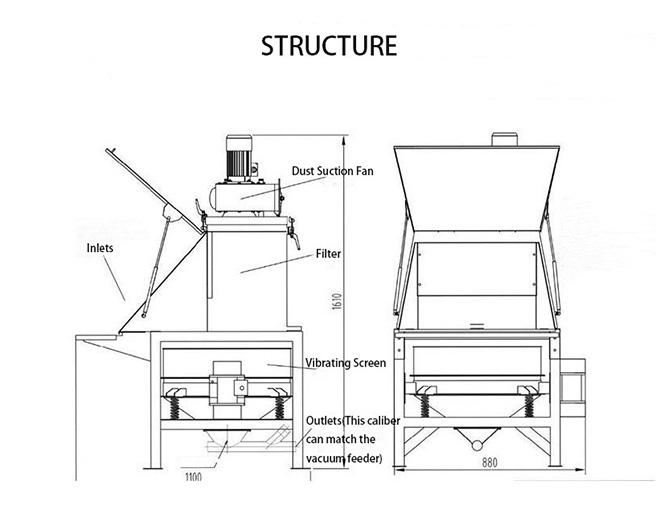

The dust-free feeding station solves the dust problem in the feeding station and mainly consists of a work surface, filter, negative pressure fan, grille, temporary storage bin, etc.

1. Design a backflush system to clean the filter system and extend its service life.

2. Flexibly design vibrating screens, crushing and other processes according to specific working conditions. Suitable for a variety of production processes.

3. The dust-free feeding station has a simple structure, is safe and convenient, and is flexible to use. The bottom can be designed to be used directly for feeding.

materials, and can also be connected to pipelines for vacuum transportation. There is no dead space for cleaning inside the system. The dust-free feeding station is a transfer device that utilizes negative pressure dust collection and is suitable for bag opening and feeding of transfer materials during the production process. Materials can be stored first and then transported, effectively increasing the transport capacity. Used in conjunction with the dust collection system to prevent dust from traditional feeding.

Product Features

① The dust-free feeding station has a simple structure and is easy to operate;

② The tapered part of the silo can be equipped with flow-aiding products (air hammer, silo wall vibrator, flow-aiding air disc) to help the flow of materials.

③ A straight screen can be installed under the silo to prevent agglomerated materials from clogging the discharge port and conveying pipeline;





Product Advantages

① The equipment has simple structure, easy operation and low maintenance cost.

② Automatic control, safe and stable;

③ Dust-free unloading to prevent dust from flying and ensure safe and civilized production;

④ Equipped with screening and vibration devices, which is beneficial to material unloading and subsequent pipeline transportation.

Application

The small bag dust-free feeding station is suitable for unpacking, placing, screening and unloading of small bag materials in the food, pharmaceutical, chemical, metallurgical and other industries. It is especially suitable for manual feeding and pre-screening. Due to the action of the dust collection fan during unpacking , which can effectively prevent dust from flying everywhere.

1. Pharmaceutical industry: Safely handling APIs, excipients, and sensitive powders with GMP compliance.

2. Food processing: Transferring flour, spices, and additives while preventing cross-contamination.

3. Chemical plants: Dust-free loading of toxic or reactive powders and granular materials.

4. Plastics manufacturing: Feeding polymer resins and recycled pellets into production lines.

5. Mineral processing: Controlled discharge of silica, talc, or calcium carbonate powders.

6. Battery production: Hygienic material transfer for lithium-ion battery cathode/anode powders.

7. Cosmetics industry: Gentle handling of pigments, mica, and loose powder ingredients.

8. Agriculture: Dust-controlled unloading of fertilizers, pesticides, and animal feed additives.

9. Recycling facilities: Clean transfer of lightweight plastic flakes or rubber particles.

10. Construction materials: Bulk material intake for cement, gypsum, or dry mortar mixing.



Application4

Technical Parameters

Model

Screen Area

Power

Speed

Dynamic Load

Static Load

Excitation Force

Flowing Capacity

Wind Pressure

RN-800

0.42

2*0.15

1460

500N

1500N

2.5*2

1550-997

1217-1641

RN-1000

0.64

2*0.25

1460

800N

2500N

5*2

1550-997

1217-1641
