Vacuum Conveyor

The vacuum feeding machine can automatically transport various materials to the hoppers of packaging machines, injection molding machines, crushers and other equipment. It can also directly transport mixed materials to mixers (such as V-type mixers, two-dimensional mixers, three-dimensional mixers, etc.) Mixer, etc.), it reduces the labor intensity of workers and solves problems such as dust spillage during feeding. It is the first choice equipment for pharmaceutical factories and food factories to pass GMP certification and promote clean and civilized production.

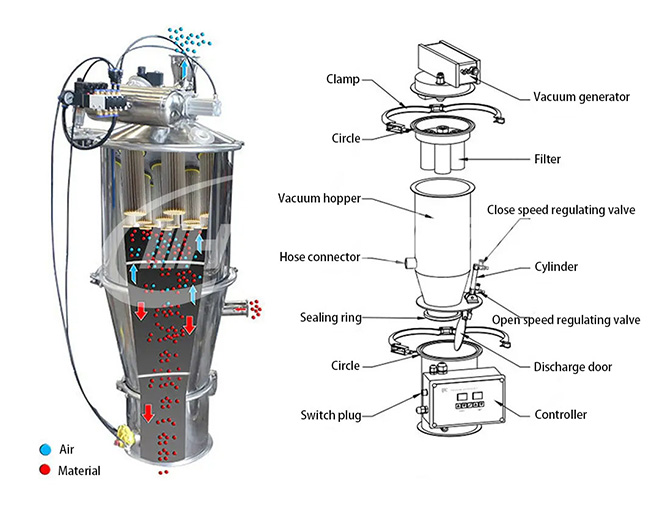

The electric vacuum feeder is composed of a vacuum pump (oil-free and water-free), stainless steel suction material, conveying hose, filter, compressed air back-flush device, pneumatic discharge door device, vacuum hopper and material level automatic control device, etc. The complete set The system is reasonably designed and beautifully manufactured.

The vortex air pump is used to pump air, so that the inlet of the suction nozzle and the entire system are in a certain negative pressure state. The powder and granular materials are sucked into the feed nozzle along with the outside air to form a material air flow, and then reach the hopper through the suction pipe, where the air and material are carried out. separation. The separated materials enter the receiving equipment. Feeding and discharging are completed by continuously opening and closing the pneumatic reversing valve, and the opening and closing of the pneumatic reversing valve is controlled by the control center. Vacuum transportation is a closed pipeline transportation. This transportation method can eliminate dust environmental pollution, improve the working environment, reduce the pollution of the environment and personnel to materials, and improve cleanliness; because it is pipeline transportation, it takes up little space and can complete powder processing in small spaces. Material transportation makes the workspace beautiful and generous; especially it is not limited by long or short distances. At the same time, the vacuum loading machine can reduce manual labor intensity and improve work efficiency.
